Qinkai Roller Trolley Wheel Trolley for use with 1-5/8″ Wide and All 1-5/8″ Strut Channel
ROLLER TROLLEY 2 WHEEL TROLLEY
- Hole Diameter: 9/32"
- Hole Spacing (From End): 13/16" (21mm)
- Hole Spacing (On Center): 1-7/8" (48mm)
- Width: 1-5/8" (41mm)
- It has a nylon slide plate to eliminate the contact between metal and metal when moving on the track. Because of its excellent quality, this product is often used with automatic door closing device. Applications in this area also include: pocket door, sliding display bracket, sliding curtain hanger, basically anything using 1-5/8 ″ track system
Channel Trolley Track Hanger Bracket
The track hanger of the passage trolley is made of steel, which has stronger corrosion resistance. Uniform coating, durable adhesion and high safety factor.
Applicable to 1-5/8 "pillar slot, trolley hanger, crane, punching bag, roller shutter door, etc.
4 x channel trolley support, requires 3/8 "x 2-1/2" bolts and 3/8 "nuts, excluding bolts and nuts. It is not an original after-sales part.

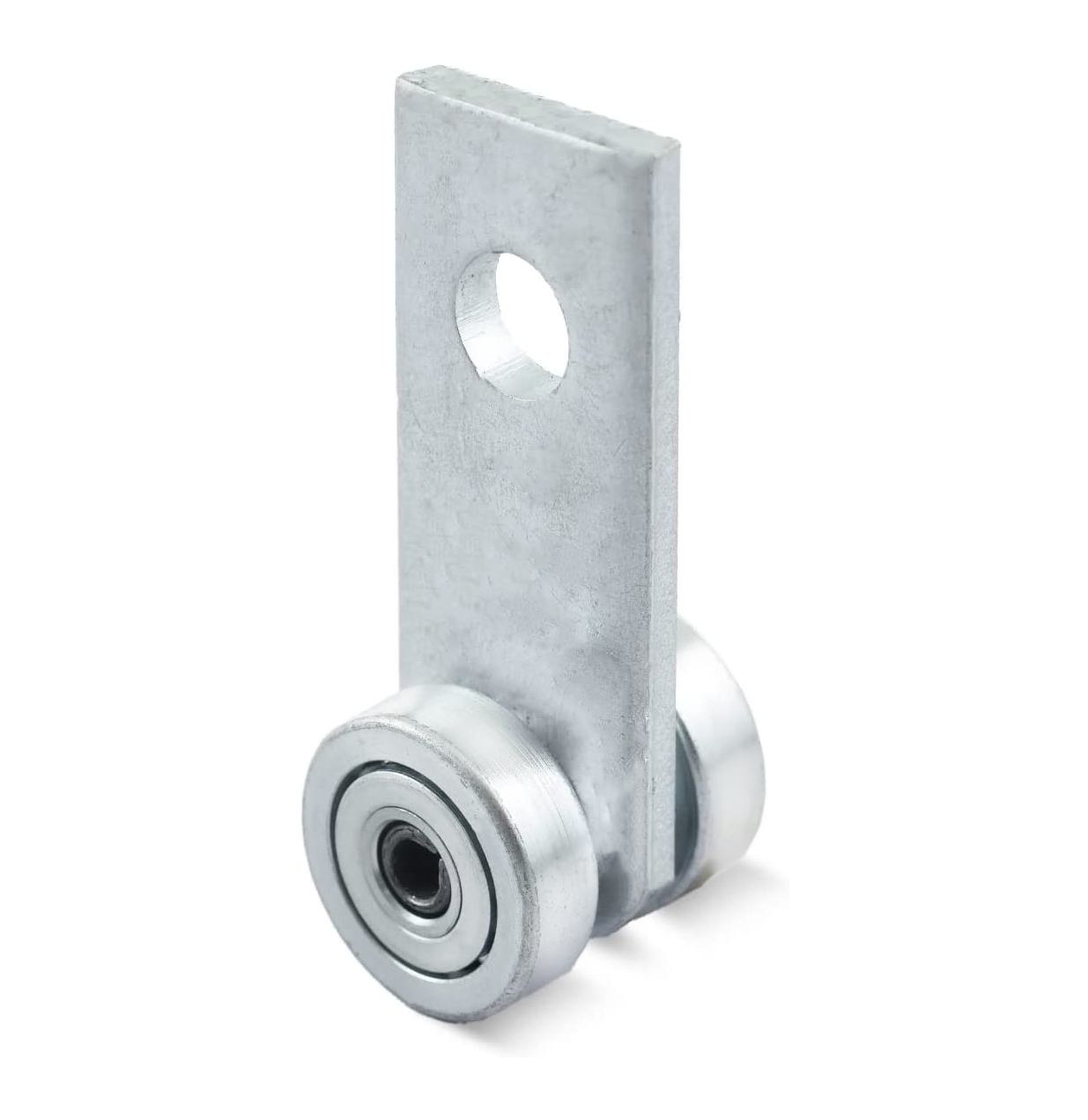

ROLLER TROLLEY 2 WHEEL TROLLEY
[Heavy construction] Two-bearing trolley assembly, made of solid steel hot-rolled carbon steel, is used for impact resistance. Galvanized to ensure the rust resistance of wheeled trolleys. The use process is smooth and noiseless, the bearing and pin are welded firmly, the work is stable, and the strength and quality are incredible!
[Generality] You can use it to install the ceiling trolley system or electric elevator, or use it in your DIY project, which can be used upside down.
[Design load] 150 lbs at 600 rpm; 220 pounds at 300 rpm; 280 pounds at 100 rpm. Breaking strength: 2200 pounds
[Trolley size] The diameter of steel plate hole is 9/16 "(14mm); the thickness is 1/4" (6mm). Applicable to 1-5/8 "wide and all 1-5/8" or higher pillar channels.
![[Heavy construction] Two-bearing trolley assembly, made of solid steel hot-rolled carbon steel, is used for impact resistance. Galvanized to ensure the rust resistance of wheeled trolleys. The use process is smooth and noiseless, the bearing and pin are welded firmly, the work is stable, and the strength and quality are incredible!
[Generality] You can use it to install the ceiling trolley system or electric elevator, or use it in your DIY project, which can be used upside down.
[Design load] 150 lbs at 600 rpm; 220 pounds at 300 rpm; 280 pounds at 100 rpm. Breaking strength: 2200 pounds
[Trolley size] The diameter of steel plate hole is 9/16 "(14mm); the thickness is 1/4" (6mm). Applicable to 1-5/8 "wide and all 1-5/8" or higher pillar channels.](http://www.qinkai-systems.com/uploads/2-wheel-trolley1.jpg)
4 Wheel Trolley with 3 holes
High quality materials
High-quality irregular channel steel, made of solid alloy steel, ensures the high strength and smoothness of the wheel pulley.
Solid steel intermediate support with high strength and impact resistance.
Stable operation of slideway
The installation of the standard deep groove ball bearing of the wheeled trolley is very stable and noiseless. The bearing is welded and positioned to ensure the stability of work.
There are 3 mounting holes on the underside of the wheel trolley, which are conveniently positioned to install screws without interference.
ROLLER TROLLEY 4 WHEEL TROLLEY
Load bearing design: our trolley assembly is applicable to 1-5/8 "wide and all 1-5/8" or higher pillar channels. The trolley track system can be used for forward and reverse direction. At 100 RPM load, at 300 rpm and speed/- 600 rpm, it can easily reach at least 400 Lb pounds.
Excellent quality: The car passage has very stable chemical properties, and can withstand the corrosion of various corrosive media and organic solvents within a certain temperature and humidity range. In liquid nitrogen (- 196), the super strut car still has a long-term impact. Very high abrasion resistance, impact resistance, high adhesion resistance, and almost no other materials are attached to the product surface.
Easy to use and M5 thread design: the pole slot trolley roller standard deep groove ball bearing is installed. It is designed with three 9/16 inch screw holes, which are located on 1/4 inch thick steel plate. The ceiling trolley system or electric elevator can be installed at will, and the operation is convenient.
Super quiet features and installation precautions: our strut trough trolley is very smooth and noiseless when used. The bearing is welded and positioned to ensure the stability of work. Please note that if the height of the support channel used with the trolley assembly is not high enough, the trolley roller will touch the mounting bolt in the guide rail. It is recommended to use strut channel horizontally.
4 Wheel Trolley with threaded
Simple to use: wheeled trolley is used for 1-5/8 "wide and all 1-5/8" or higher pillar channels, M10 (3/8 inch) bolts are in the middle, 80mm (3.15 inch) long, and the design load is 770 pounds.
High strength: the pin in the strut slot trolley bearing is made of solid alloy steel, which ensures the high strength of the wheel trolley. Solid steel intermediate support, high strength, impact resistance. Galvanized, rust-proof
Smooth operation: the standard deep groove ball bearing of the wheeled trolley is installed, and it is very stable and noiseless when used. The bearing is welded and positioned to ensure stable operation.
Can be used upside down: 3 nuts are prepared in the attachment, so you can use the cart upside down.
Applicable: applicable to 1-5/8 "wide and all 1-5/8" or higher pillar channels
ROLLER TROLLEY 4 WHEEL TROLLEY
Simple to use: the wheeled trolley is applicable to 1-5/8 “wide and all 1-5/8″ or higher pillar channels, and can be used for electric hoist installation and two-way mobile installation, with a design load of 700 pounds.
Electric hoist installation: the distance between the bottom hole center of the pole slot trolley can meet the position requirements of different types of electric hoist installation holes.
Two-way moving installation: it can be used together with the pillar channel to set two moving directions, so that the crane can work in multiple positions.
Smooth operation: the standard deep groove ball bearing of the wheeled trolley is installed, and it is very stable and noiseless when used. The bearing is welded and positioned to ensure stable operation.
High strength: the pin in the strut slot trolley bearing is made of solid alloy steel, which ensures the high strength of the wheel trolley. Solid steel intermediate support, high strength, impact resistance. Galvanized, rust-proof
4 Wheel Trolley
Heavy structure: Our trolley components are made of high-strength solid steel, impact resistant, galvanized, and can provide anti-rust and anti-corrosion protection. It also has a solid bearing steel pin in the strut channel
Safe and stable performance: the four-bearing trolley assembly has welded bearings and pin shafts, providing greater stability for safe use. It uses deep groove ball bearing to ensure that you can operate smoothly without any noise
Long-term use: Each package is equipped with two beam trolleys, achieving a proper balance in quality, durability and performance. They provide low noise operation and are galvanized to provide smooth opening/closing even in the long term
Multi-functional and multi-purpose: Each four-wheel trolley assembly provides 450 pounds of weight support, applicable to 1-5/8 "wide and all 1-5/8" or higher pillar channels. Its diameter hole is 9/16 "(14mm), and the thickness is 1/4" (6mm)
We support you: If you have any problem with the wheel of car component 4, please tell us, and we will help you quickly solve it to ensure your complete satisfaction. Please note: It is recommended that you use the pillar channel horizontally
